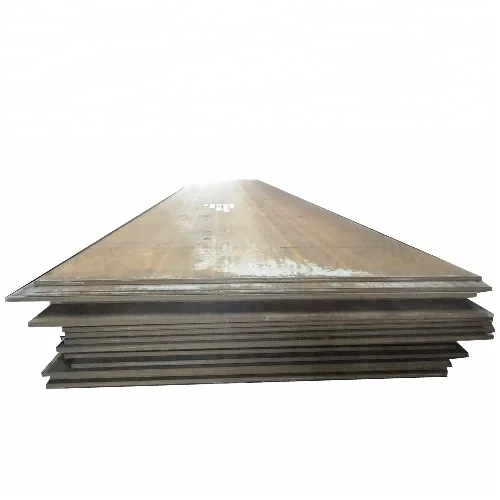

100% Quality Tested EN 10028-3 Grade P460NL1 Steel Plates
- EN 10028-3 Grade P460NL1 Steel Plates available for sale in thickness: 6MM to 300MM, width: 1500mm to 4050mm, and length: 3000mm to 15000mm
If you are interested in purchasing EN 10028-3 Grade P460NL1 steel plates, or have any queries, please feel free to email us on firstname.lastname@example.org or call us on +919892451458
Metline is a specialized supplier of EN 10028-3 Grade P460NL1 steel sheets and plates. We can offer EN 10028-3 Grade P460NL1 pressure vessel steel plates in a variety of thickness and sizes at reasonable prices. EN 10028-3 Grade P460NL1 is either available as ex–stock or directly shipped from the mill to our customers across the globe.
EN 10028-3 it is three steel grades (P275, P355, and P460) which indicate each grade’s minimum yield strength (in MPa) for plates 16 mm thick and below. These are further subdivided on the basis of impact testing temperature: N and NH indicate impact testing at – 20 deg C or above, NL1 at -40 deg C or above, and NL2 at -50 deg C or above.
Chemical Composition of EN 10028-3 Grade P460NL1 Steel Plate
|Grade||The Element Max (%)|
Mechanical Properties of EN 10028-3 Grade P460NL1 Steel Plates
|Grade||Thickness||Yield||Tensilmie||Elongation||Impact Energy(KV J) min|
|P460NL1||mm||Min Mpa||Mpa||Min %||-20°||0°||+20°|
|16> to ≤35||450||570-720||17||47||55||63|
|35> to ≤50||440||570-720||17||47||55||63|
|50> to ≤70||420||570-720||17||47||55||63|
|70> to ≤100||400||540-710||16||47||55||63|
|100> to ≤150||380||520-690||16||47||55||63|
