AISI 4140 Seamless Pipes Supplied to Kerala | SMLS 185mm OD x 110mm ID

Project Overview: AISI 4140 SMLS Pipes Delivered to Kerala

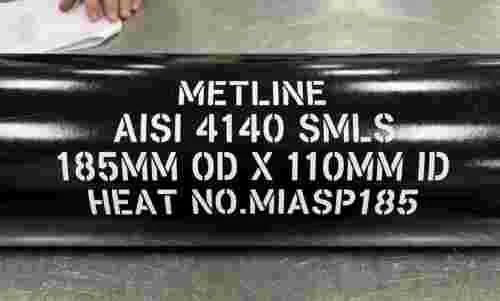

Metline Industries has successfully completed the supply of AISI 4140 Seamless Pipes to an industrial buyer in Kerala, South India. The material dispatched was a thick-wall seamless pipe in AISI / SAE 4140 grade, measuring 185mm OD × 110mm ID (Wall Thickness: 37.5mm), with Heat Number MIIASP185. The pipes were supplied complete with EN 10204 3.1 Mill Test Certificates, heat markings, and anti-corrosion protection — ensuring full traceability and compliance for the client’s application.

AISI 4140 is a chromium-molybdenum alloy steel grade widely recognized for its exceptional strength, toughness, and fatigue resistance. This delivery to Kerala catered to an engineering or manufacturing application requiring heavy-wall, high-strength alloy steel tubing. Metline Industries, as a leading alloy steel seamless pipe manufacturer and supplier in India, ensured on-time dispatch with zero quality deviations.

Latest Price List for AISI 4140 Seamless Pipes | 4140 / 42CrMo4 / 1.7225

Below are indicative prices for AISI 4140 seamless pipes and thick-wall alloy steel tubes based on prevailing Indian market rates. Prices are subject to revision based on quantity, size, and delivery schedule.

#Item DescriptionSize / DimensionsIndicative Price
1AISI 4140 SMLS Pipe – 185mm OD x 110mm ID (WT: 37.5mm)185mm OD x 110mm ID₹ 380 – 420 / kg
2AISI 4140 SMLS Pipe – 114.3mm OD x 75mm ID (WT: ~19.65mm)114.3mm OD x 75mm ID₹ 340 – 375 / kg
3AISI 4140 SMLS Pipe – 168.3mm OD x 120mm ID (WT: 24.15mm)168.3mm OD x 120mm ID₹ 360 – 400 / kg
4AISI 4140 SMLS Pipe – 219.1mm OD x 150mm ID (WT: 34.55mm)219.1mm OD x 150mm ID₹ 395 – 435 / kg
5AISI 4140 SMLS Pipe – 273mm OD x 200mm ID (WT: 36.5mm)273mm OD x 200mm ID₹ 410 – 450 / kg
6AISI 4130 SMLS Pipe – 101.6mm OD x 63.5mm ID (WT: 19.05mm)101.6mm OD x 63.5mm₹ 310 – 350 / kg
7AISI 4140 Thick Wall Tube – 250mm OD x 180mm ID250mm OD x 180mm ID₹ 420 – 460 / kg
8AISI 4142 SMLS Pipe – 139.7mm OD x 90mm ID (WT: 24.85mm)139.7mm OD x 90mm ID₹ 355 – 390 / kg
942CrMo4 / 1.7225 SMLS Tube (EN 10297) – 150mm OD x 100mm ID150mm OD x 100mm ID₹ 370 – 410 / kg
10AISI 4140 SMLS Pipe – Custom / Non-Standard OD & WTAs per requirementOn Request

⚠ Important Notes:

  • All prices are indicative and subject to change based on raw material costs and market conditions.
  • Mill Test Certificates as per EN 10204 3.1 available with all supplies.
  • Heat Number MIIASP185 traceable on pipes, packing lists, and MTCs.
  • Third-party inspection (SGS, Bureau Veritas, Intertek, ABS) available on request.
  • Pipes supplied with black paint / anti-corrosion oil coating and export-grade packing.
  • Custom OD, ID, wall thickness, and lengths available for made-to-order requirements.

Pipe Specifications — AISI 4140 SMLS as Supplied to Kerala

The following specifications were confirmed from the pipe markings and job order for this Kerala delivery:

  • Product :  AISI 4140 Seamless Pipe (SMLS)
  • Outer Diameter (OD) :  185mm
  • Inner Diameter (ID) :  110mm
  • Wall Thickness (WT) :  5mm (Heavy Wall)
  • Heat Number :  MIIASP185
  • Grade Equivalent :  AISI / SAE 4140 | 42CrMo4 (EN) | 1.7225 (DIN) | SCM440 (JIS) | EN 19 (BS)
  • Standard :  ASTM A519 (Seamless Carbon and Alloy Steel Mechanical Tubing)
  • Condition :  Annealed / Normalized and Tempered (as per end application)
  • Finish :  Black Paint / Anti-Corrosion Oil
  • Documentation :  EN 10204 3.1 MTCs, Chemical & Mechanical Property Reports

About AISI 4140 Seamless Pipes — Grade, Equivalents & Properties

AISI 4140 is a low-alloy steel containing chromium (~0.90–1.20%) and molybdenum (~0.15–0.25%), which significantly enhance its hardenability, tensile strength, and resistance to wear and fatigue. It is one of the most widely used mechanical tubing grades for heavy engineering, oil & gas tooling, cylinder manufacturing, and structural applications.

Key international equivalents of AISI 4140:

  • 42CrMo4 —  EN 10083-3 (European Standard)
  • 7225 —  DIN Material Number
  • SCM440 —  JIS G4053 (Japanese Standard)
  • EN 19 —  British Standard
  • 708M40 —  BS970 (UK)

In Kerala, AISI 4140 seamless pipes and mechanical tubes are also commonly referred to as 4140 alloy pipe, CrMo pipe, chromoly tube, alloy steel cylinder pipe, or high-strength alloy tube — particularly in the heavy engineering and fabrication sectors around Kochi, Thrissur, and Palakkad.

Applications of AISI 4140 Seamless Pipes in Kerala Industries

  • Hydraulic Cylinder Manufacturing :  Thick-wall 4140 tubes used as cylinder barrels requiring precision boring and honing
  • Oil & Gas / Offshore Equipment :  Drill collars, tool joints, and sub-assemblies for offshore platforms
  • Heavy Engineering & Defence :  Shafts, spindles, and structural components requiring high strength-to-weight ratio
  • Marine & Shipbuilding :  Structural tubes for vessels operating out of Kochi Port
  • Chemical & Fertilizer Plants :  Pressure-rated alloy steel piping for high-temperature / high-pressure service
  • Die & Mould Making :  Thick-wall 4140 tubes machined into die blocks and mould inserts

Why Choose Metline Industries for AISI 4140 Seamless Pipes?

Metline Industries is a trusted alloy steel seamless pipe manufacturer and supplier with over 30 years of experience supplying high-wall-thickness mechanical tubes across India and to global markets.

  • Specialist in thick-wall AISI 4140 / 4130 / 42CrMo4 / 1.7225 seamless pipes and mechanical tubes
  • Size Range :  ½” to 36″ OD, with wall thickness up to 4″ and heavier on request
  • Also supplies ASTM A519 seamless mechanical tubing in grades 1008, 1010, 1020, 4130, 4140 from stock
  • Full heat traceability :  Heat numbers cross-referenced on pipes, packing lists, and EN 10204 3.1 MTCs
  • Coating options :  Black oil paint, anti-corrosion oil, zinc phosphate, and customer-specified coatings
  • Also supplies hot rolled seamless pipes and cold drawn seamless tubes in carbon, alloy, and stainless grades
  • Third-party inspection accepted :  SGS, Intertek, Bureau Veritas, ABS
  • PAN India delivery :  Kerala (Kochi, Thiruvananthapuram, Kozhikode, Thrissur, Palakkad) and all major metros

Looking for AISI 4140 Seamless Pipe Suppliers in India?

Metline Industries is your one-stop supplier for AISI 4140 seamless pipes and mechanical tubes in thick-wall and custom dimensions. Whether you need standard sizes or heavy-wall alloy steel seamless pipes in 4140, 4130, 4142, or EN 42CrMo4 grade, we offer competitive pricing, reliable heat traceability, and complete MTC documentation.

📧 Send your enquiry to: sales@metline.in

Share your size, OD, ID, wall thickness, grade, and quantity — and we will revert with the best prices and shortest lead times.

We support bulk orders, custom cut lengths, and PAN India delivery including Kerala (Kochi, Thiruvananthapuram, Kozhikode, Thrissur, Palakkad).
