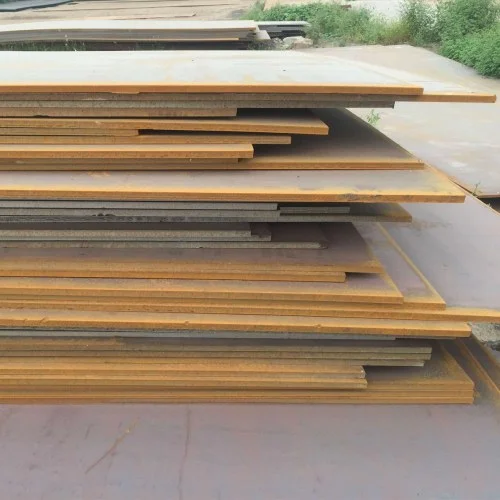

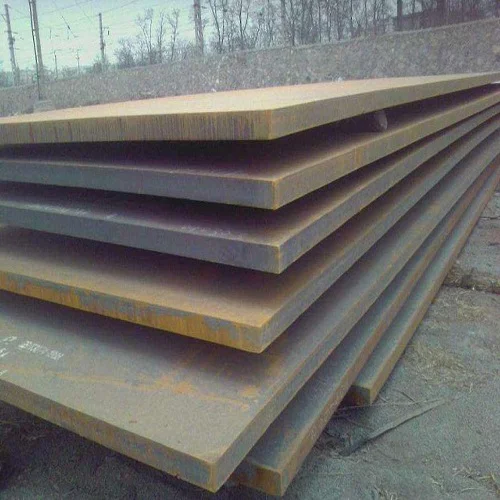

100% Quality Tested ASTM A514 Grade R Steel Plates
- ASTM A514 Grade R Steel Plates available for sale in thickness: 6MM to 300MM, width: 1500mm to 4050mm, and length: 3000mm to 15000mm
If you are interested in purchasing ASTM A514 Grade R steel plates, or have any queries, please feel free to email us on sales@metline.in or call us on +919892451458
Metline is a specialized supplier of ASTM A514 Grade R steel sheets and plates. We can offer ASTM A514 Grade R pressure vessel steel plates in a variety of thickness and sizes at reasonable prices. ASTM A514 Grade R is either available as ex–stock or directly shipped from the mill to our customers across the globe.
ASTM A514 is the specification covers high-yield, quenched, and tempered alloy steel plates for use in welded bridges and other structures. Plates shall be subjected to heat treatment to conform to the tensile and hardness requirements for thickness, tensile strength, yield strength, elongation, reduction of area, and Brinell hardness. Heat and product analysis shall conform to the chemical requirements for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, vanadium, titanium, zirconium, copper, boron, and columbium. Conformance to required mechanical properties shall be determined by tension and hardness tests.
Chemical Composition of ASTM A514 Grade R Steel Plates
| A514 Grade R | The Element Max (%) | |||||||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | V | Ti | Zr | Cu | B | Nb | |
| 0.15-0.20 | 0.85-1.15 | 0.035 | 0.035 | 0.20-0.35 | 0.90-1.10 | 0.35-0.65 | 0.15-0 | 0.03-0.08 | – | – | – | – | – | |
| 25 | ||||||||||||||
Mechanical Properties of ASTM A514 Grade R Steel Plates
| Grade | Thickness | Yield | Tensile | Elongation |
| A514 grade R | mm | Min Mpa | Mpa | Min % |
| 20 | 690 | 760-895 | 18 | |
| 20-65 | 690 | 760-895 | 18 | |
| 65-150 | 620 | 690-895 | 18 |
